Hot Selling Handheld High Frequency Induction Heating Machine Hf-40kw

Product Categories

OURUIDA CO.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Working Application : Heating, Forging, Quenching, Melting, Annealing

Input Current : 40A

Origin : China

MOQ : 1

Power : 40kw

Brand : Ord

HS Code : 8514400090

Work Power : 3*380V/415V/440V/480V 50-60Hz

Style : Induction Heating Machine

Trademark : ORD

Length of Cable : 5m+2m Flexible Connection

Transport Package : Wooden Box

The Range of Operating Voltage : 340-430V AC

Core : IGBT

Structure : Vertical Type

Production Capacity : 10, 000sets

Principle : Induction Heating

Specification : CE, SGS, ISO

Frequency : 30-80kHz

Price : 1800

Contact Now

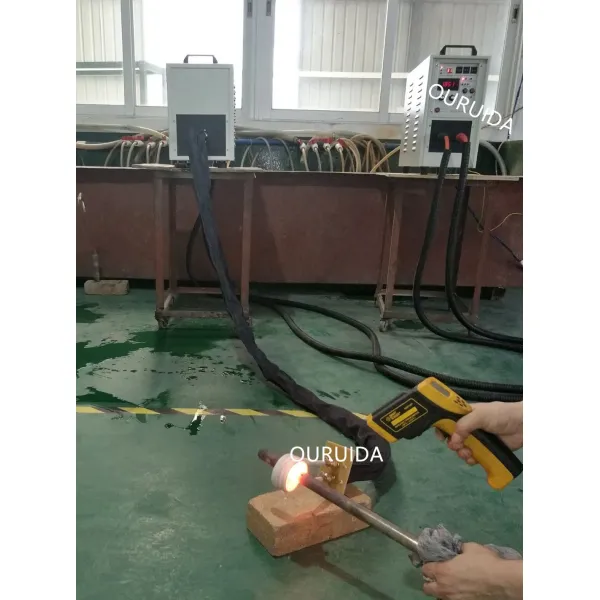

High Frequency Induction Heating equipment HF-40KW with 2m flexible connexion and 5m cable

More than 21 years experience,stable and goods performance
CE certificated
Copperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner.
Suitable for a large range, heating, quenching, forging, melting, solding and so on.
2 Transformer ratios more options connect induction coil
Coaxial Connection Flexible, can handle the flexible to work the workpiece that normal coil can not get it.

IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
100% Duty cycle, continuous working is allowed at maximum power output.
Display of heating power and heating current and oscillating frequency;
Simple to install, Installation can be done by unprofessional person very easily;
Light weight
Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;

Type	HF-40KW
Work Power	3*380v/415v/440v/480v 50-60hz
The range of operating voltage	340-430V AC
Output power	40KW
Input current	40A
Fluctuating frequency	30-80khz
Timing (Heat time,Retain time,Cool time)	1-99S
The flow rate of cooling water	0.15 Mpa 9L/Min
Water temperature protection point	40centidegree
Duty cycle	100% (40degree room temperature)
Weight	Mainparts:32Kg+28KG
Size	Main Parts:560230480mm Transfromer Part: 460265440MM
