HF-25KW High Frequency Induction Heating Machine:
Advantage: 1 IGBT
2 DELIXI Air Switch
3 Phase Bridge ( Germany IXYS)
4 Filter Capacitor (Janpan chemi-con)
5 All screws are Stainless Steel
6 More than 22 years experience, rich experience, stable performance, good quality.
7 Copperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner
8 Suitable for a large range, heating, quenching, forging, melting, solding and so on. Main characteristics: 1 IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
7 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;

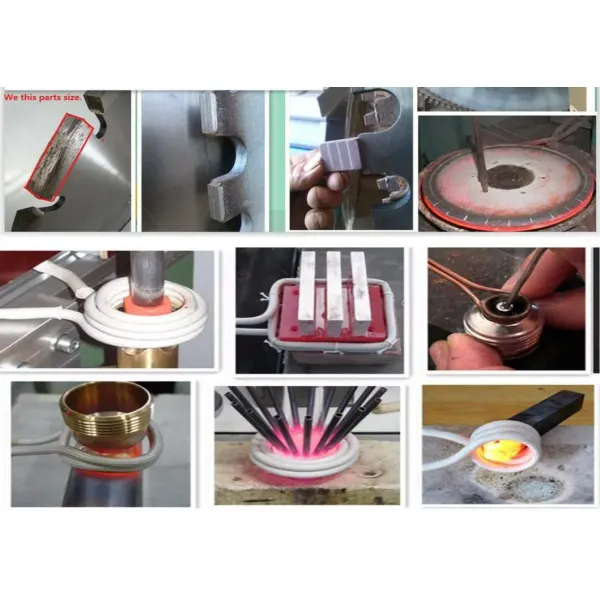

 Applications:
Drill tip heat shaping
 Heat treatment
 Quenching
 Forging
 Melting
Soldering and brazing
Welding
| Â Type | HF-25KW |
|  Work Power |  380v,415v,440v,480v *3phase 50-60hz |
| Â The range of operating voltage | Â 340-30 AC |
| Â Output power | Â 15KW |
| Â Input current | Â 36A |
| Â Fluctuating frequency | Â 30-80khz |
| Â Timing (Heat time,Retain time,Cool time) | Â 1-99S |
| Â The flow rate of cooling water | Â 0.15 Mpa 7.6L/Min |
| Â Water temperature protection point | Â 40centidegree |
| Â Duty cycle | Â 100% (40degree room temperature) |
| Â Weight | 48Kg |
| Â Size | 640*280*550mm
 |
Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.Â
2. Inquiry and consulting support.Â
3. Sample testing support.Â
4. View our Factory.
In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.
After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacementÂ
parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance technician to provide visitingÂ
service after checking with the customer and charge for a favorable price.Â
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment
maintain!Â
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assuranceÂ
and operation guarantee.
