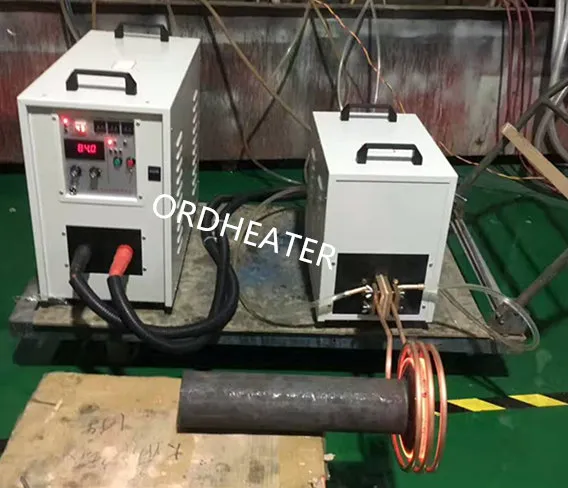

IGBT Super Audio Frequency Induction Heating Machine Manufacturer Application in Hardening to Various Auto Parts (SF-60KW)

Workpiece : Pipes, Bar, Shaft, Gear, Motor, Chain and So on

Type : Induction Heating Machine

Weight : Mainparts:89kg Transformer:68kg

The Delivery Time : 3-7days

Trademark : ORD

Work Power : 3*380V/415V/440V/480V 50-60Hz

Price : 3000

Input Current : 90A

Feature : High Effiecency and Saving Energy

Frequency : 20-50kHz

Specification : CE, SGS, ISO

Structure : Vertical Type

MOQ : 1

Brand : Ouruida

Cooling Mothed : Water Cooling System

HS Code : 8514400090

Production Capacity : 10, 000sets

Model NO. : SF-60KW

Certification : CE

Application : Heating, Quenching, Forging, Melting, Welding

Work Power Range : 340-430V AC

Transport Package : Wooden Box

Origin : China

Power : 60kw

Contact Now

IGBT Super Audio frequency induction heating machine manufacturer application in hardening to Various auto parts (SF-60KW):
IGBT Super Audio Frequency Induction Heating Machine Manufacturer Application in Hardening to Various Auto Parts (SF-60KW)

Advantage:
1 More than 20 years experience, stable and goods performance
2 CE certificated
3 Copperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner.
4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.
5 Two transformer ratios, can match better different length induction coilIGBT Super Audio Frequency Induction Heating Machine Manufacturer Application in Hardening to Various Auto Parts (SF-60KW)
IGBT Super Audio Frequency Induction Heating Machine Manufacturer Application in Hardening to Various Auto Parts (SF-60KW)
Main characteristics:
1 IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 Â Constant current or constant power status can be selected accordingly to achieve higher heating efficiency;
3 100% Duty cycle, continuous working is allowed at maximum power output.
4 Â Display of heating power and heating current and oscillating frequency;
5 Simple to install, Installation can be done by unprofessional person very easily;
6 Light weight
7 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
IGBT Super Audio Frequency Induction Heating Machine Manufacturer Application in Hardening to Various Auto Parts (SF-60KW)
IGBT Super Audio Frequency Induction Heating Machine Manufacturer Application in Hardening to Various Auto Parts (SF-60KW)
IGBT Super Audio Frequency Induction Heating Machine Manufacturer Application in Hardening to Various Auto Parts (SF-60KW)

IGBT Super Audio Frequency Induction Heating Machine Manufacturer Application in Hardening to Various Auto Parts (SF-60KW)
IGBT Super Audio Frequency Induction Heating Machine Manufacturer Application in Hardening to Various Auto Parts (SF-60KW)

Packing photoIGBT Super Audio Frequency Induction Heating Machine Manufacturer Application in Hardening to Various Auto Parts (SF-60KW)
 Type SF-60KW
 Work Power  3*380v/415v/440v/480v 50-60hz
 work power range  340-430V AC
 Output power  60KW
 Input current  90A
 Fluctuating frequency  20-50khz
 Timing (Heat time,Retain time,Cool time)  1-99S
 The flow rate of cooling water  0.15 Mpa 18L/Min
 Water temperature protection point  40centidegree
 Duty cycle  100% (40degree room temperature)
 Weight  Mainparts:89Kg   Transformer:68kg
 Size Main Parts:800*600*800MM
Transformer: 650*450*600MM
Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.Â
2. Inquiry and consulting support.Â
3. Sample testing support.Â
4. View our Factory.

In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.

After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
 technician to provide visiting service after checking with the customer and charge for a favorable price.Â
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee. Â
