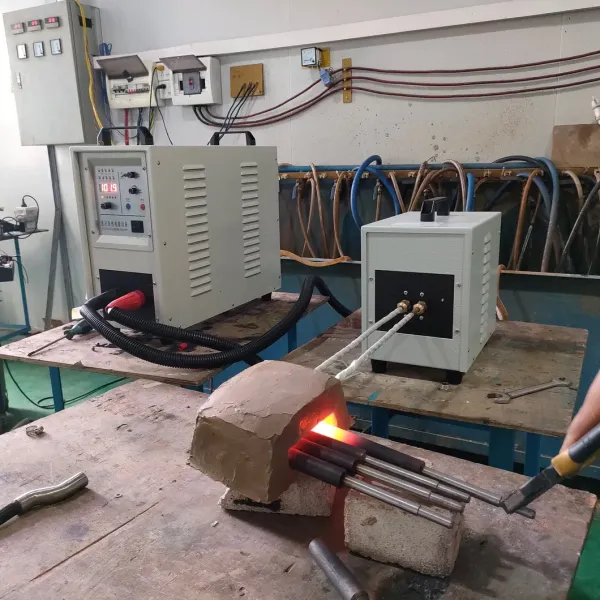

SF-25KW Super Audio Induction Heating Machine for hot forging/heat treatment /annealing /quenching /welding /brazing of the matels :
Advantage: 1 More than 21 years experience, stable and goods performance
2 CE certificated
3 Copperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner.
4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.
5 Two transformer ratios, can match better different length induction coil
Main characteristics: 1 IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3 Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
| Â Type | SF-25KW |
|  Work Power |  3*380v/415v/440v/480v 50-60hz |
| Â The range of operating voltage | Â 340-430V AC |
| Â Output power | Â 25KW |
| Â Input current | Â 40A |
| Â Fluctuating frequency | Â 20-50khz/ 10-40KHZ |
| Â Timing | Â 1-99SÂ Â |
|  The flow rate  Size  of cooling water |  0.15 Mpa 18L/Min |
| Â Water temperature protection point | 40C |
| Â Duty cycle | 100% (40degree room temperature) |
|  Weight:       Main Parts:48Kg   Transformer:32KG |
Main Parts:600*350*600MM
Transformer: 550*300*500MM |
Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.Â
2. Inquiry and consulting support.Â
3. Sample testing support.Â
4. View our Factory.
In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.
After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
 technician to provide visiting service after checking with the customer and charge for a favorable price.Â
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
