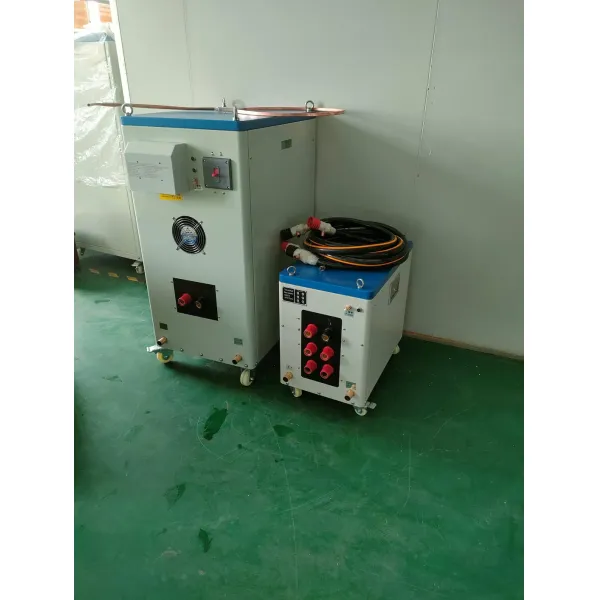

120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios

Product Categories
OURUIDA CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios

Model Number : SF-120KW

Work Voltage : 380V, 400V, 415V, 440V, 480V

Production Capacity : 10, 000sets

Delivery Time : 6DAYS

Size : Main Parts:800*600*800mm Transformer: 650*450*600m

Transport Package : Plywood Package

Origin : China

Supply Ability : 1000SETS/ MONTH

Water Temperature Protection Point : 40centidegree

Specification : CE, SGS, ISO

Packaging Details : PLY WOODEN BOX PACKAGE

Weight : Mainparts:150kg Transformer:105kg

Cooling Mothed : Water Cooling System

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Timing (Heat Time,Retain Time,Cool Time) : 1-99s

Operation : Automatic and Manial

HS Code : 8514400090

Price : 4000

Brand Name : OURUIDA

Model NO. : SF-120KW

Output Power : 120KW

Variable Transfromer : Different Transformer Ratios

Fluctuating Frequency : 20-50khz

MOQ : 1

Trademark : ORD

Certification : CE/ ROHS/ SGS

The Range of Operating Voltage : 340-430V AC

Duty Cycle : 100% (40degree room temperature)

Place of Origin : CHINA

Input Current : 180A

Cooling Water Flow : 0.15 Mpa 22L/Min

Contact Now

IGBT Induction Heating Machine with CE, RoHS, ISO and So on Certificates
China Factory price supply IGBT Induction heating machine with CE, ROHS, ISO and so on certificates.
Applications
  • Hot forming equipment (hot forging, dithermic forming, hot rolling, hot upsetting)
  • Welding (brazing, hot fit, hot fusion)
  • Heat treatment (quenching, annealing, tempering, quenching and tempering)
  • Smelting (gold, silver, copper, iron, stainless steel and other metals)
120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios 120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios 120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios 120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios
Key Advantages
  • More than 21 years experience, stable and good performance
  • CE certificated
  • Cooperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner
  • Suitable for a large range: heating, quenching, forging, melting, soldering and more
  • Variable transformer ratios: 8:1,10:1,12:1,14:1,16:1, 8:2,10:2,12:2,14:2,16:2 can match different length induction coil, suitable for large range applications
Main Characteristics
  • IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost
  • 100% Duty cycle, continuous working is allowed at maximum power output
  • Display of heating power and heating current and oscillating frequency
  • Simple to install, Installation can be done by unprofessional person very easily
  • Light weight
  • Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability
Technical Specifications - Model SF-120AB
Parameter Specification
Work Power 3*380v/415v/440v/480v 50-60hz
The range of operating voltage 340-430V AC
Output power 120KW
Input current 180A
Fluctuating frequency 20-50khz
Timing (Heat time, Retain time, Cool time) 1-99S
The flow rate of cooling water 0.15 Mpa 22L/Min
Water temperature protection point 40°C
Duty cycle 100% (40°C room temperature)
Weight Main parts: 150Kg | Transformer: 105kg
Size Main Parts: 800*600*800MM | Transformer: 650*450*600MM
120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios 120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios 120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios 120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios 120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios 120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios
