Sf-120kw IGBT Super Audio Variable Transfromer Induction Heater

Size : Main Parts:800*600*800mm Transformer: 650*450*600m

Work Voltage : 380V, 400V, 415V, 440V, 480V

HS Code : 8514400090

Specification : CE, SGS, ISO

Timing (Heat Time,Retain Time,Cool Time) : 1-99s

Trademark : ORD

Production Capacity : 10, 000sets

Price : 4000

Input Current : 180A

Weight : Mainparts:150kg Transformer:105kg

Transport Package : Plywood Package

Operation : Automatic and Manial

Certification : CE, ISO

Brand : Ord

Type : Induction Heating Machine

MOQ : 1

Water Temperature Protection Point : 40centidegree

Frequency : 20-50kHz

Power : 120kw

Structure : Vertical Type

Model NO. : SF-120KW

The Range of Operating Voltage : 340-430V AC

Variable Transfromer : Different Transformer Ratios

Origin : China

Contact Now

SF-120KW Super Audio Induction Heater
Sf-120kw IGBT Super Audio Variable Transfromer Induction HeaterSf-120kw IGBT Super Audio Variable Transfromer Induction HeaterSf-120kw IGBT Super Audio Variable Transfromer Induction Heater
Sf-120kw IGBT Super Audio Variable Transfromer Induction Heater

Advantage:
1 More than 21 years experience, stable and goods performance
2 CE certificated
3 Copperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner.
4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.
5 Variable  transformer ratios, 8:1,10:1,12:1,14:1,16:1, 8:2,10:2,12:2,14:2,16:2 can match different length induction coil, suitable large range.

Main characteristics:
1 IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3 Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
6 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
 Type SF-120AB
 Work Power  3*380v/415v/440v/480v 50-60hz
 The range of operating voltage  340-430V AC
 Output power  120KW
 Input current  180A
 Fluctuating frequency  20-50khz
 Timing (Heat time,Retain time,Cool time)  1-99S
 The flow rate of cooling water  0.15 Mpa 22L/Min
 Water temperature protection point  40centidegree
 Duty cycle  100% (40degree room temperature)
 Weight  Mainparts:150Kg   Transformer:105kg
 Size Main Parts:800*600*800MM
Transformer: 650*450*600MM
 Sf-120kw IGBT Super Audio Variable Transfromer Induction HeaterSf-120kw IGBT Super Audio Variable Transfromer Induction Heater
Sf-120kw IGBT Super Audio Variable Transfromer Induction HeaterSf-120kw IGBT Super Audio Variable Transfromer Induction Heater
Sf-120kw IGBT Super Audio Variable Transfromer Induction Heater
Sf-120kw IGBT Super Audio Variable Transfromer Induction Heater
Â

Product Tags:

IGBT induction heater industrial



super audio variable transformer



induction heating machine 120kw


Quality Sf-120kw IGBT Super Audio Variable Transfromer Induction Heater for sale

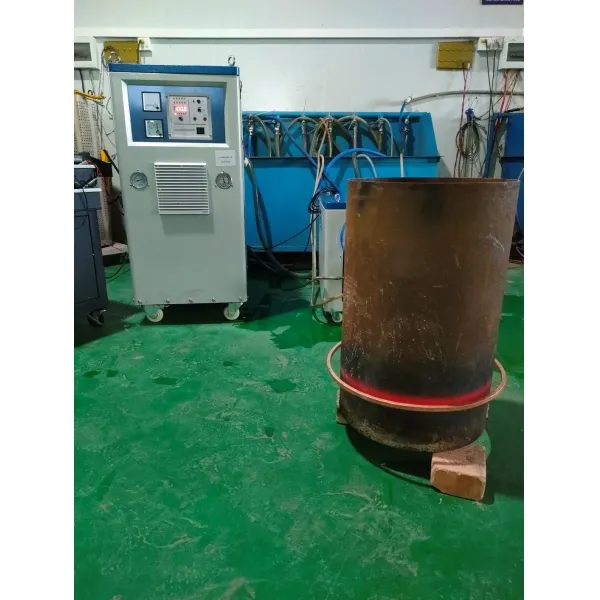

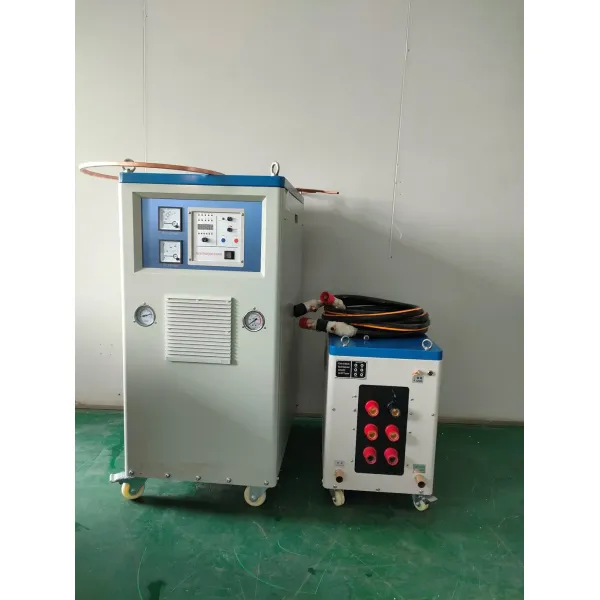

Sf-120kw IGBT Super Audio Variable Transfromer Induction Heater Images
