Super Audio Induction Heating Machine (SF-60KW)

MOQ : 1

Power : 60kw

Work Power Range : 340-430V AC

Production Capacity : 10, 000sets

Origin : China

Application : Heating, Quenching, Forging, Melting, Welding

Model NO. : SF-60kw

Frequency : 20-50kHz

Transport Package : Wooden Box

Weight : Mainparts:89kg Transformer:68kg

Trademark : ORD

Specification : CE, SGS, ISO

Work Power : 3*380V/415V/440V/480V 50-60Hz

Price : 3500

Structure : Vertical Type

HS Code : 8514400090

Input Current : 90A

Brand : Ord

Contact Now

Super audio induction heating machine SF-60KW
Super Audio Induction Heating Machine (SF-60KW)
Advantage:
1 More than ten years experience, stable and goods performance
2 CE certificated
3 Copperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner.
4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.
5 Two transformer ratios, can match better different length induction coil

Super Audio Induction Heating Machine (SF-60KW)

Main characteristics:
1 IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 Â Constant current or constant power status can be selected accordingly to achieve higher heating efficiency;
3 100% Duty cycle, continuous working is allowed at maximum power output.
4 Â Display of heating power and heating current and oscillating frequency;
5 Simple to install, Installation can be done by unprofessional person very easily;
6 Light weight
7 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;

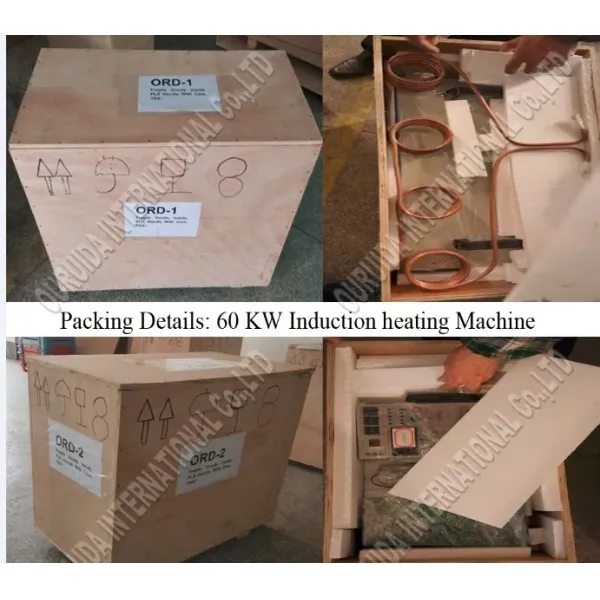

Packing photoSuper Audio Induction Heating Machine (SF-60KW)
 Type SF-60AB
 Work Power  3*380v/415v/440v/480v 50-60hz
 work power range  340-430V AC
 Output power  60KW
 Input current  90A
 Fluctuating frequency  20-50khz
 Timing (Heat time,Retain time,Cool time)  1-99S
 The flow rate of cooling water  0.15 Mpa 18L/Min
 Water temperature protection point  40centidegree
 Duty cycle  100% (40degree room temperature)
 Weight  Mainparts:89Kg   Transformer:68kg
 Size Main Parts:800*600*800MM
Transformer: 650*450*600MM
