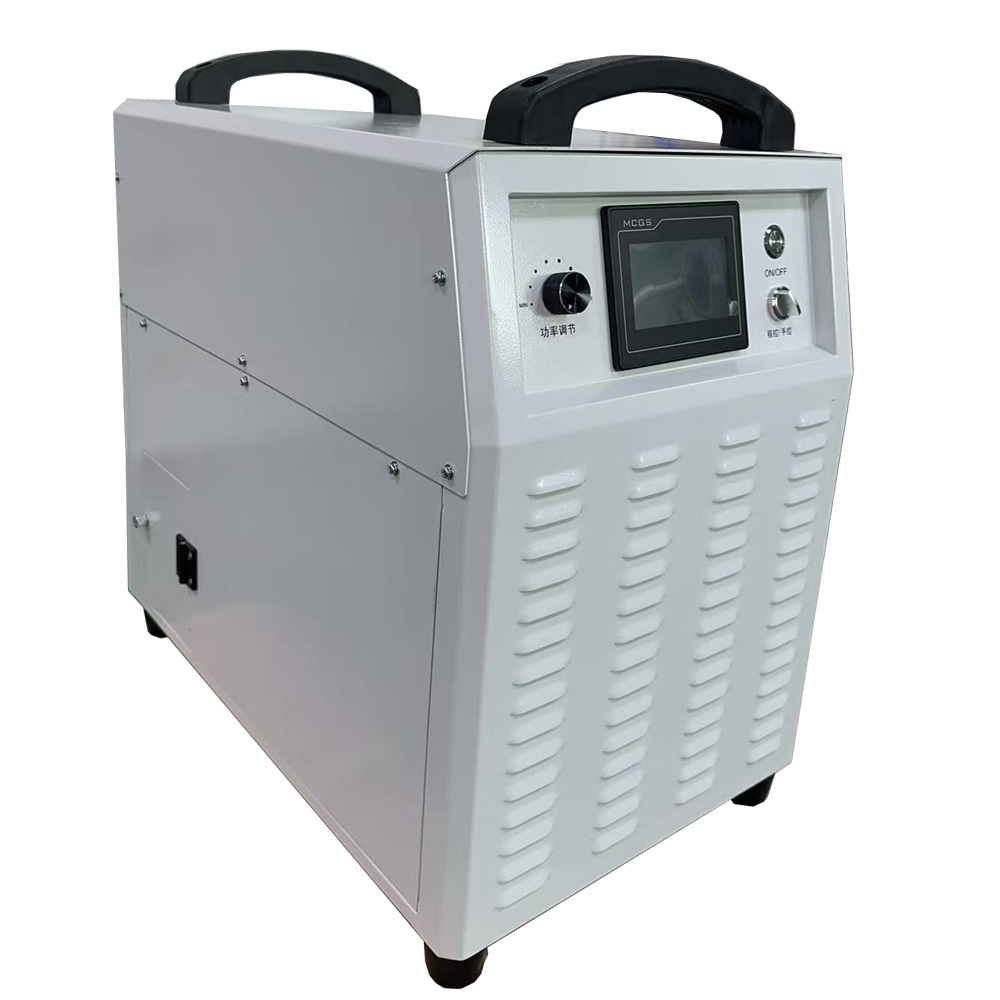

60kw Air Cooled Digital Induction Heating Machine with 8 Section Heating for Industrial Applications

Input Current : 90A

Model Number : DSP-60KW

Weight : 100kg

Production Capacity : 10, 000sets

Price : 3000

Packaging Details : export wooden box

Power : 60kw

The Range of Operating Voltage : 340-430V AC

Delivery Time : 5days

Frequency : 10-40kHz

Model NO. : DSP-60KW

Application : Heating, Quenching, Forging, Melting, Welding

Supply Ability : 1000/Month

Type : Induction Heating Machine

Size : 600*800*830

Operating Voltage : 340-430V AC

Transport Package : Wooden Box

Brand Name : OURUIDA

Work Power : 3*380V/415V/440V/480V 50-60Hz

Structure : Vertical Type

Place of Origin : CHINA

MOQ : 1

Trademark : ORD

Origin : China

HS Code : 8514400090

Certification : CE/ROHS/SGS....

Payment Terms : L/C,D/A,D/P,T/T

Specification : CE, SGS, ISO

Contact Now

DSP-60kw Air Cooled Digital Induction Heating Machine for Shrink Fit

DSP-60KW China supply digital induction heating machine for Shrink Fit Bearing

60kw Air Cooled Digital Induction Heating Machine with 8 Section Heating for Industrial Applications 60kw Air Cooled Digital Induction Heating Machine with 8 Section Heating for Industrial Applications 60kw Air Cooled Digital Induction Heating Machine with 8 Section Heating for Industrial Applications
Key Advantages
  • More than 21 years experience, stable and good performance
  • CE certificated
  • Digital Type
  • 8 Section heating capability
Main Characteristics

Front Panel uses LCD Touch Screen, Key and Power Switch with all digital display. Can use Switch Signal (Electrical frequency signal) to control machine start and stop, and control power via PLC (RS232 or RS482 options).

Visual Human-computer Interface makes operation more intuitive and user-friendly. With abundant industrial interfaces, it offers stronger and more flexible matching ability with robots, various automation equipment and remote control (unmanned) devices.

Induction Heating Machine features remote control function and adopts digital circuit control. Power regulation can be adjusted from 0% to 100% resolution, and digital PID temperature control module can be configured to set target temperature of workpiece (infrared temperature measurement or thermocouple temperature measurement) automatically. Temperature control accuracy is +1°C for power regulation in heating process.

Working Models
  1. Manual: On and stop via switch control
  2. Timer: Set heating time, stops automatically when time is reached
  3. Fixed Temperature: Set required heating temperature, stops when target temperature is reached
  4. Constant Temperature: Automatically adjusts heating power to maintain consistent workpiece temperature
  5. Section Heating Model: 8 sections (S1-S8) with options to set heating power, timer, temperature or constant temperature for each section. Power set to 0 means no heating required

9 programmable memory slots (P1-P9) allow storage of different workpiece settings. Select programs by clicking P(P1-P9) for efficient operation when handling multiple workpieces on one machine.

60kw Air Cooled Digital Induction Heating Machine with 8 Section Heating for Industrial Applications 60kw Air Cooled Digital Induction Heating Machine with 8 Section Heating for Industrial Applications 60kw Air Cooled Digital Induction Heating Machine with 8 Section Heating for Industrial Applications 60kw Air Cooled Digital Induction Heating Machine with 8 Section Heating for Industrial Applications 60kw Air Cooled Digital Induction Heating Machine with 8 Section Heating for Industrial Applications
Technical Specifications
Type DSP-60KW
Work Power 3*380v/415v/440v/480v 50-60hz
Operating Voltage Range 340-430V AC
Output Power 60KW
Input Current 90A
Fluctuating Frequency 15-35khz
Timing (Heat time, Retain time, Cool time) 1-9999S
Heating Sections 8 Sections
Water Temperature Protection Point 40°C
Duty Cycle 100% (40°C room temperature)
Weight 100KG
Size 600*800*830mm
60kw Air Cooled Digital Induction Heating Machine with 8 Section Heating for Industrial Applications 60kw Air Cooled Digital Induction Heating Machine with 8 Section Heating for Industrial Applications 60kw Air Cooled Digital Induction Heating Machine with 8 Section Heating for Industrial Applications
