Full Digital Control 80KW Portable Induction Heating Machine for Industrial Annealing and inner hole

Product Categories
OURUIDA CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Full Digital Control 80KW Portable Induction Heating Machine for Industrial Annealing and inner hole

Payment Terms : L/C,D/A,D/P,T/T

power supply : 80kw

Model Number : DSP-80KW

Temperature accuracy : ±2-5°C

MOQ : 1

Delivery Time : 5-8DAYS

Energy conversion : Over 90% efficiency

test video : provided

Brand Name : OURUIDA

Heating speed : 1 kg steel from 20°C to 800°C in 5 seconds

Packaging Details : EXPORT WOODEN BOX PACKGAE

Price : 12000

Model : DSP-80KW +10M coaxial-cable+5HP industrial water chiller

Supply Ability : 1000SETS/MONTH

cooling system : water cooling

Certification : SGS/CE/ROHS

Heating head weight : 5.5-9 kg

Place of Origin : CHINA

Cable length : 3-40 meters

Contact Now

Full Digital IGBT Induction Heating Machine for Portable Annealing Industrial Component Heat Treatment
As a professional manufacturer of portable induction heating machines, we specialize in delivering high-performance, compact, and mobile heating solutions for a wide range of industrial applications. Our machines leverage advanced electromagnetic induction technology to generate rapid, localized, and flameless heat directly within conductive metal workpieces—making them ideal for demanding field operations and workshop environments alike.
Full Digital Control 80KW Portable Induction Heating Machine for Industrial Annealing and inner hole
Key Advantages of Portable Induction Heating Machine
  • Ultra-Fast & Efficient Heating
    Our portable induction heaters convert over 90% of input energy directly into heat within the workpiece, achieving heating speeds up to 10 times faster than traditional resistance or flame-based methods. For example, 1 kg of steel can be heated from 20°C to 800°C in just five seconds.
  • Flameless & Safe Operation
    No open flame, no combustion gases, and no hot surfaces on the coil itself. This makes our equipment safe to use in confined spaces, near flammable materials, or in environments where open flames are strictly prohibited.
  • Precise & Localized Heating
    By designing custom induction coils, heat can be concentrated exactly where needed—minimizing thermal distortion, reducing oxidation, and preserving the material properties of surrounding areas. Temperature control is accurate to within ±2-5°C.
  • Compact, Lightweight & Portable
    Our handheld and mobile units are designed for maximum flexibility. The heating head weighs as little as 0.9-5.5 kg, with cable lengths of 3-6 meters, allowing operators to easily reach complex or hard-to-access workpieces on the factory floor or at outdoor job sites.
  • Energy-Saving & Eco-Friendly
    Induction heating eliminates standby heat loss and can save approximately 40% energy compared to traditional high-frequency tube furnaces. It produces zero emissions and contributes to a cleaner, quieter, and more comfortable working environment.
  • Easy to Operate & Maintain
    Featuring digital displays, PLC control interfaces, and built-in protection systems (over-current, over-voltage, water shortage, overheating, etc.), our machines are user-friendly and require minimal training. The simple, robust design ensures long service life and low maintenance costs.
Full Digital Control 80KW Portable Induction Heating Machine for Industrial Annealing and inner hole

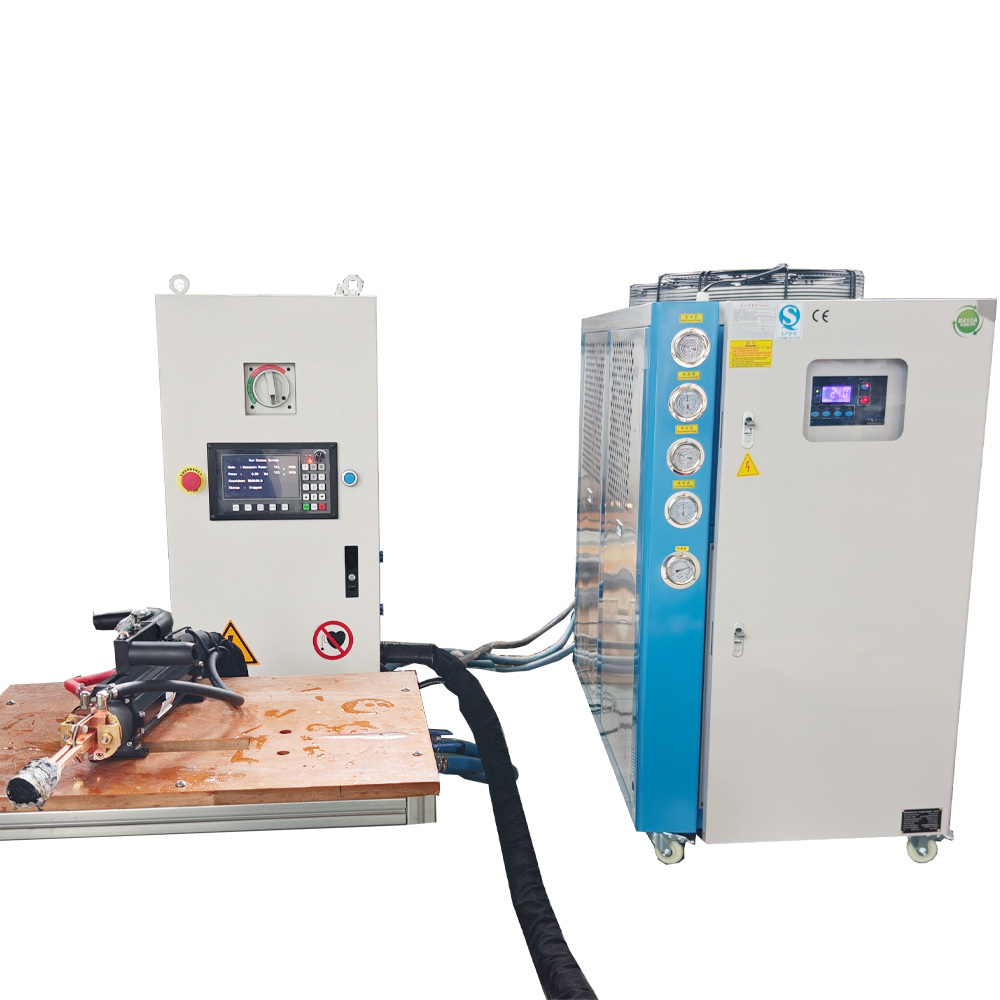

MODEL: DSP-80KW +10M Coaxial-Cable +5HP Industrial Water Chiller
Application: Inner Hole Heating
One of the most distinctive strengths of our portable induction heating machines is their exceptional capability for inner hole heating. By utilizing specially designed coils—such as hairpin-type, spiral, or conical coils inserted directly into the bore—our equipment can rapidly and uniformly heat the internal surfaces of holes, pipes, and cylindrical components.
Full Digital Control 80KW Portable Induction Heating Machine for Industrial Annealing and inner hole
Portable Induction Heating Machine Applications
  • Shrink Fitting / Hot Assembly
    Heating the inner hole of components such as bearings, gears, couplings, and pulleys causes them to expand, converting an interference fit into a clearance fit for effortless, force-free installation. Once cooled, the component contracts to form a strong, reliable joint.
  • Inner Hole Quenching & Hardening
    Our machines can perform precise surface hardening on the inner walls of cylinders, hydraulic support barrels, and gear bores, significantly improving wear resistance, corrosion resistance, and service life.
  • Inner Hole Annealing & Stress Relief
    For components that have undergone prior hardening processes (e.g., carburized gears), localized induction annealing of the inner hole restores ductility and relieves internal stresses without affecting the hardness of the outer surface.
  • Bolt & Fastener Heating
    Specialized hairpin coils can be inserted into axial holes of large bolts (e.g., in steam turbines or offshore structures) to heat them rapidly for easy nut removal or assembly—up to 10 times faster than conventional resistance bolt heaters.
  • Pipe-in-Pipe (PIP) Inner Pipe Heating
    In the offshore oil and gas industry, our technology can heat the inner pipe of coaxial pipe assemblies to prevent or melt hydrate formation, ensuring smooth fluid flow in deep-sea environments.
  • Induction Brazing & Welding in Confined Spaces
    The compact heating head can access narrow gaps and inner cavities for brazing copper tubes, stainless steel pipes, compressor components, and transformer joints—widely used in HVAC, refrigeration, and automotive industries.

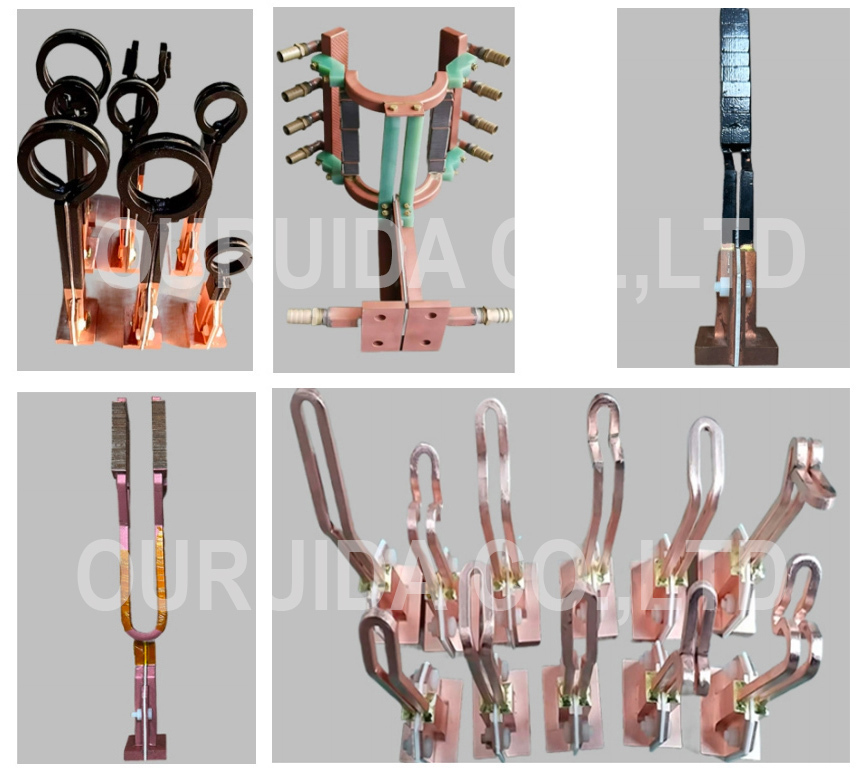

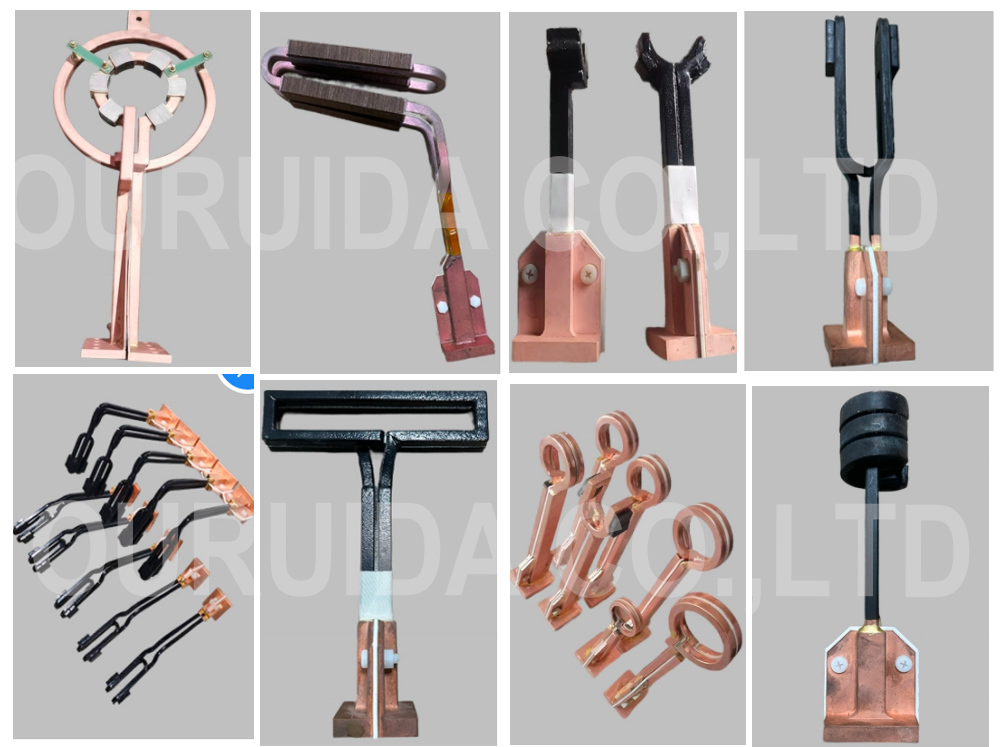

Custom Heating Coil Designs for Different Workpieces
Full Digital Control 80KW Portable Induction Heating Machine for Industrial Annealing and inner hole Full Digital Control 80KW Portable Induction Heating Machine for Industrial Annealing and inner hole
Package Photos
Full Digital Control 80KW Portable Induction Heating Machine for Industrial Annealing and inner hole Full Digital Control 80KW Portable Induction Heating Machine for Industrial Annealing and inner hole
